Auger Flight Forced Stainless Steel Backing Spiral Brush

China Auger Flight Forced Stainless Steel Backing Spiral Brush Manufacturer

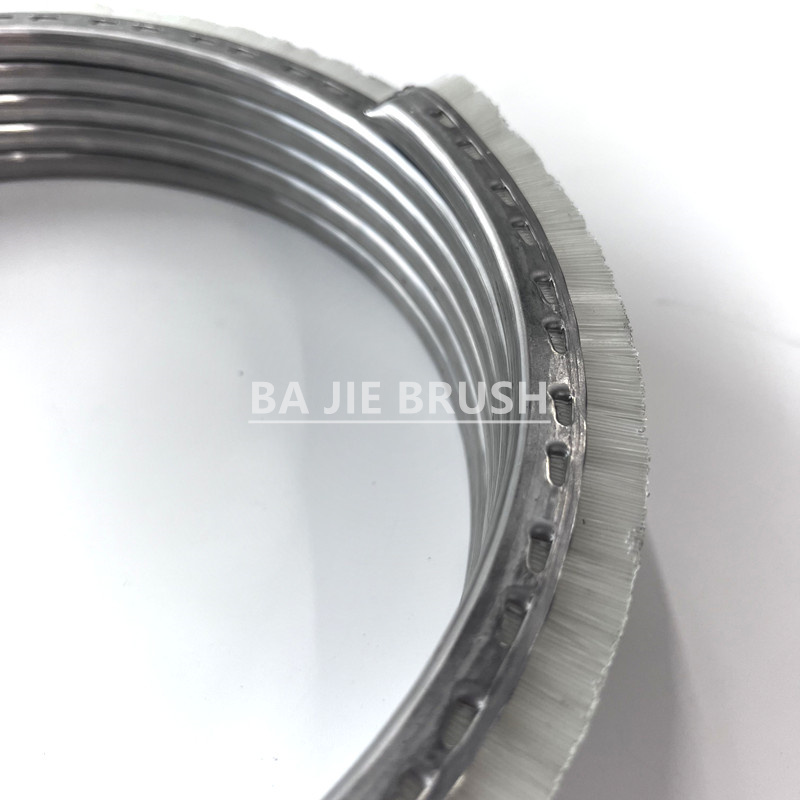

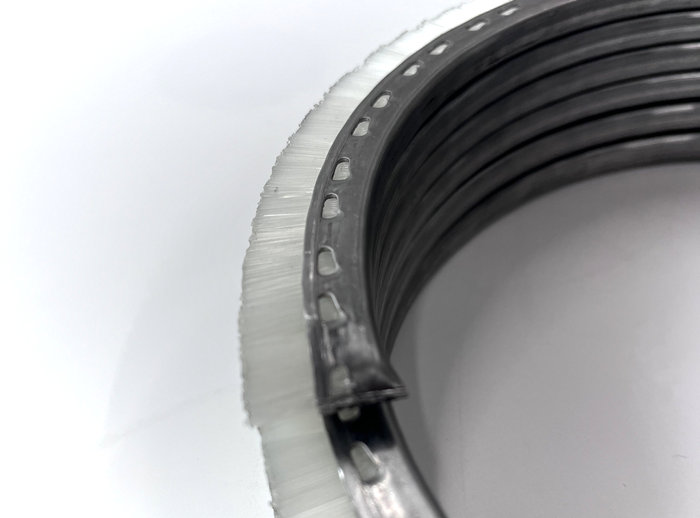

This spiral brush is a reinforced type of auger flight brush. Compared with a standard spiral brush, this model features a stronger metal backing structure. On the backing strip, you will notice specially formed locking holes. These are created by pressing the metal inward to tightly clamp the bristles in place, making the brush coil much more secure and durable during operation.

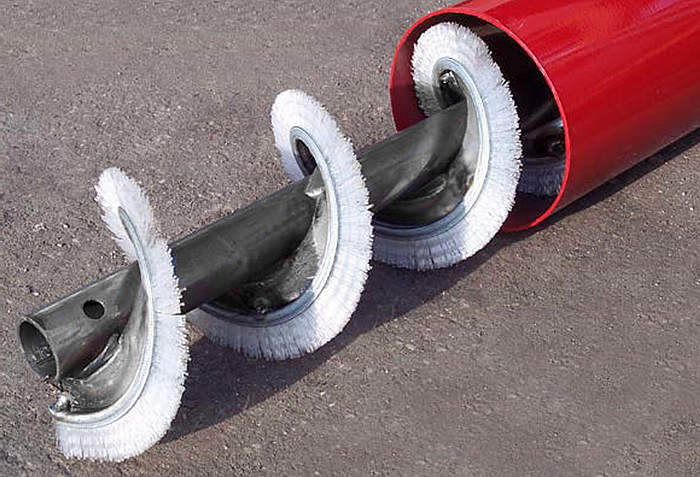

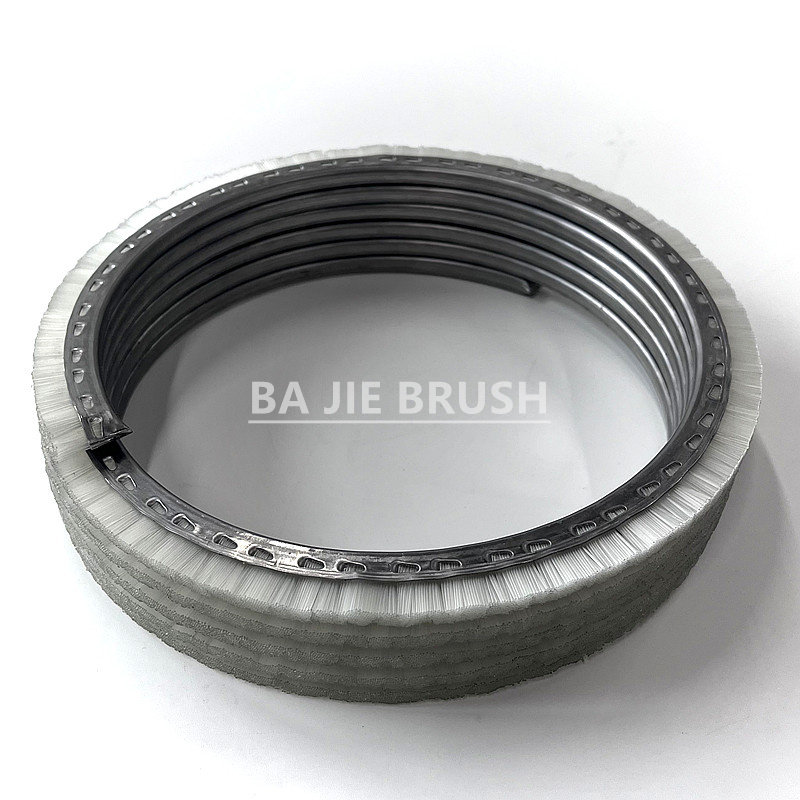

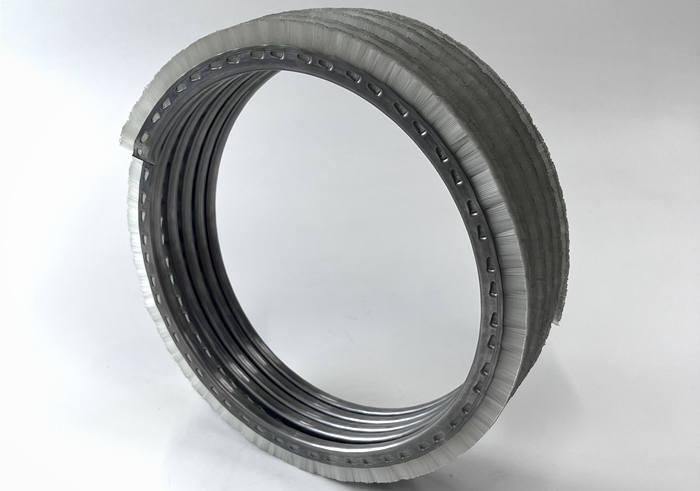

This upgraded structure makes it a true forced spiral brush, built to withstand heavy-duty use and continuous rotation. It is mainly installed on auger flights and screw conveyors to perform cleaning tasks while the equipment is running. One of its most common applications is in wastewater treatment plants.

As an auger flight spiral brush, it can also be used in other industries such as food processing, agriculture, and conveyor cleaning.

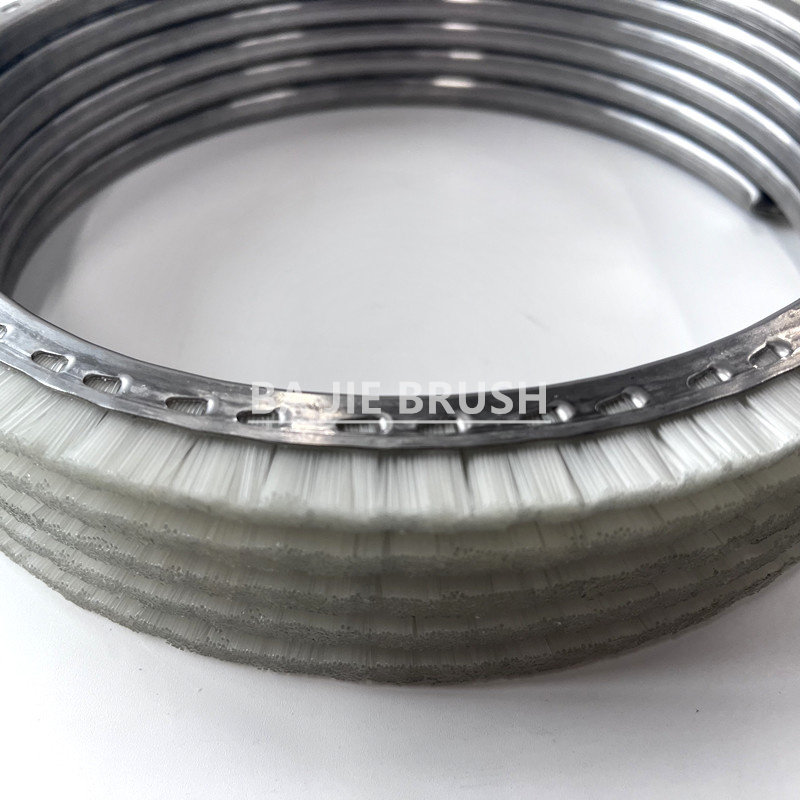

• Stainless steel backing for extra strength
  The brush uses a stainless steel backing spiral brush structure, typically sized at 8 × 10 mm.
• PA612 bristles
  The bristle material is PA612 nylon with a standard diameter of 0.6 mm.
• Clockwise or counterclockwise winding
  During production, the coils can be manufactured in either right-hand (clockwise) or left-hand (counterclockwise) spiral direction, depending on the auger rotation direction and installation requirements.

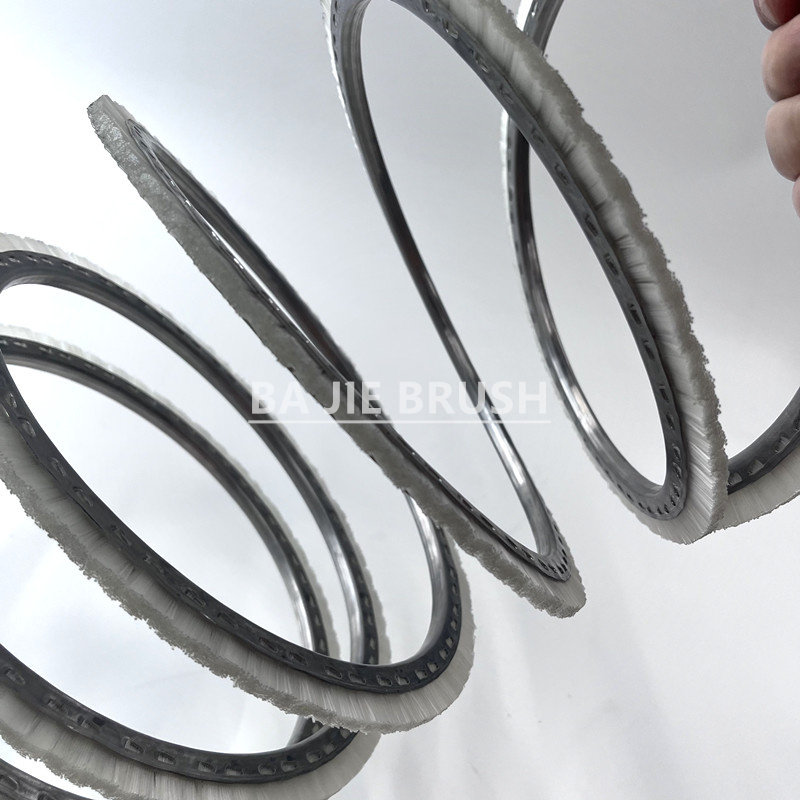

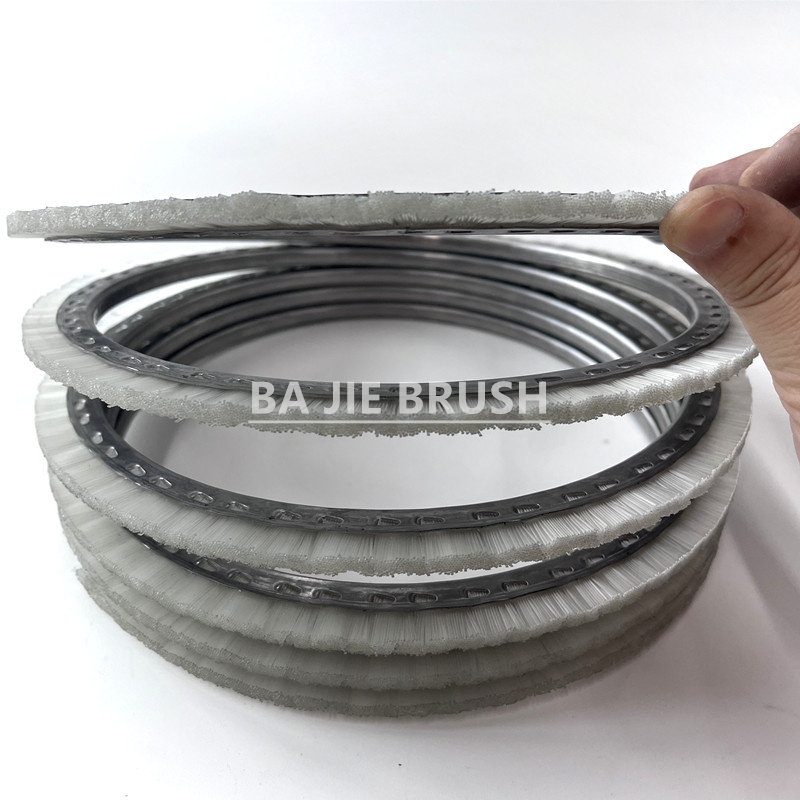

• Loose coil design for flexible installation
  The brush is produced as loose coils, allowing users to stretch or compress the spiral depending on the installation space and cleaning intensity needed. This flexibility makes it easier to adapt the brush to different auger flight configurations.

1. Customization from the source factory
   As a direct manufacturer, we can customize inner diameter, outer diameter, and overall length according to your auger specifications. Whether you need a standard auger flight brush or a special size, we can produce it for you.
2. Strong and safe packaging
   All brushes are packed in wooden cases to prevent deformation or damage during transportation.
3. Strict quality control
   We maintain tight dimensional tolerances within ±1 mm, ensuring precise fit and stable performance after installation.
4. Competitive pricing
   This is one of our regular production items. Because we manufacture it continuously throughout the year, we are able to offer stable supply and cost-effective pricing.
