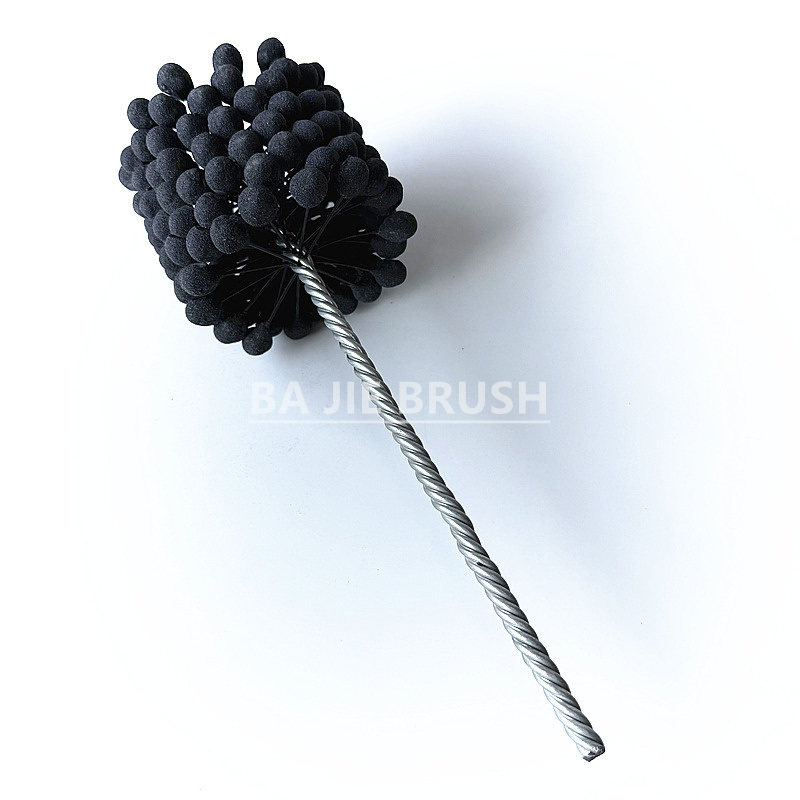

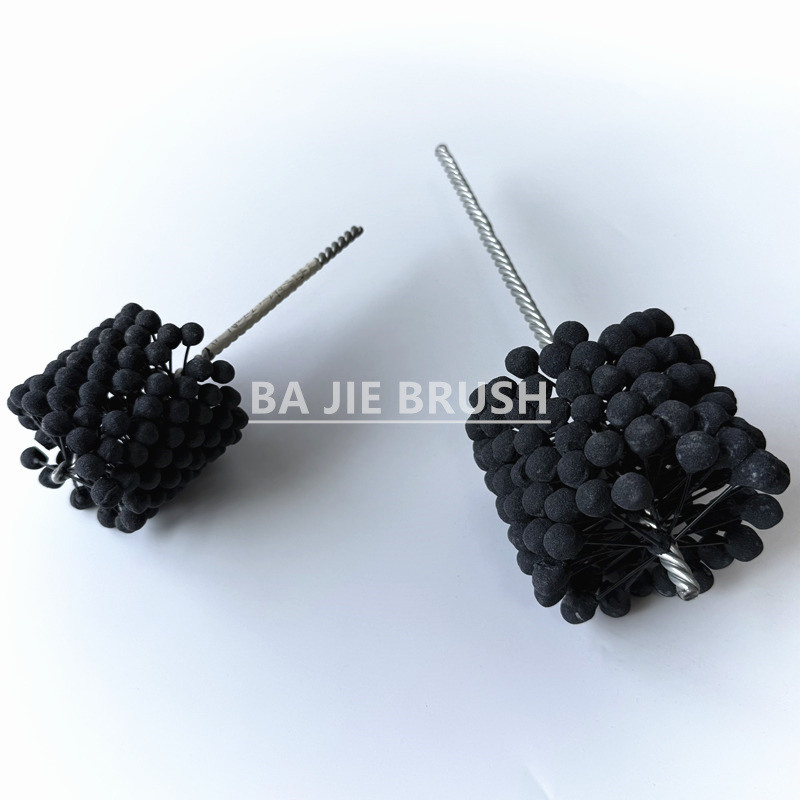

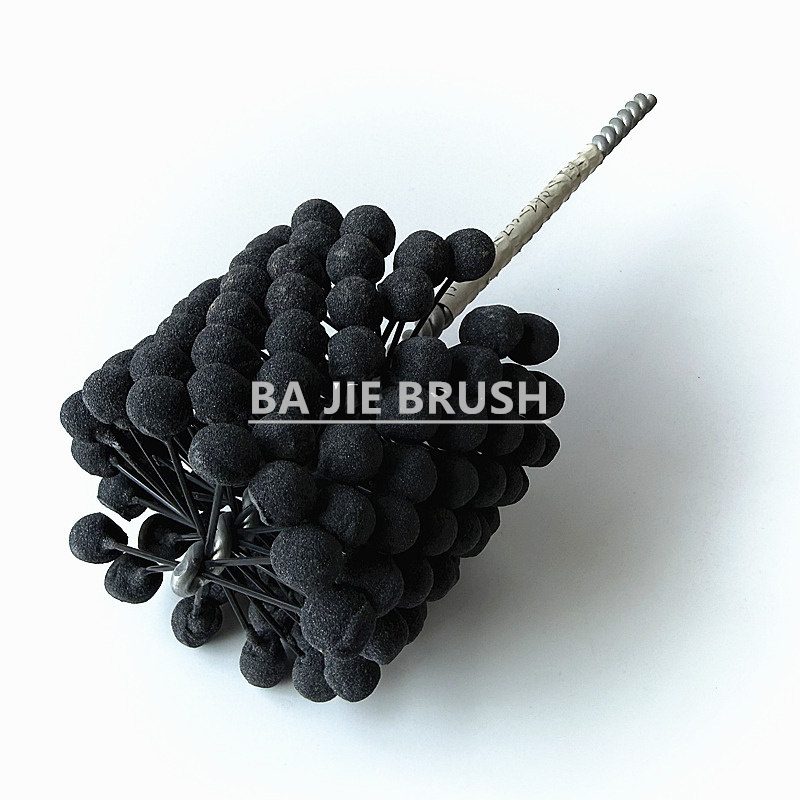

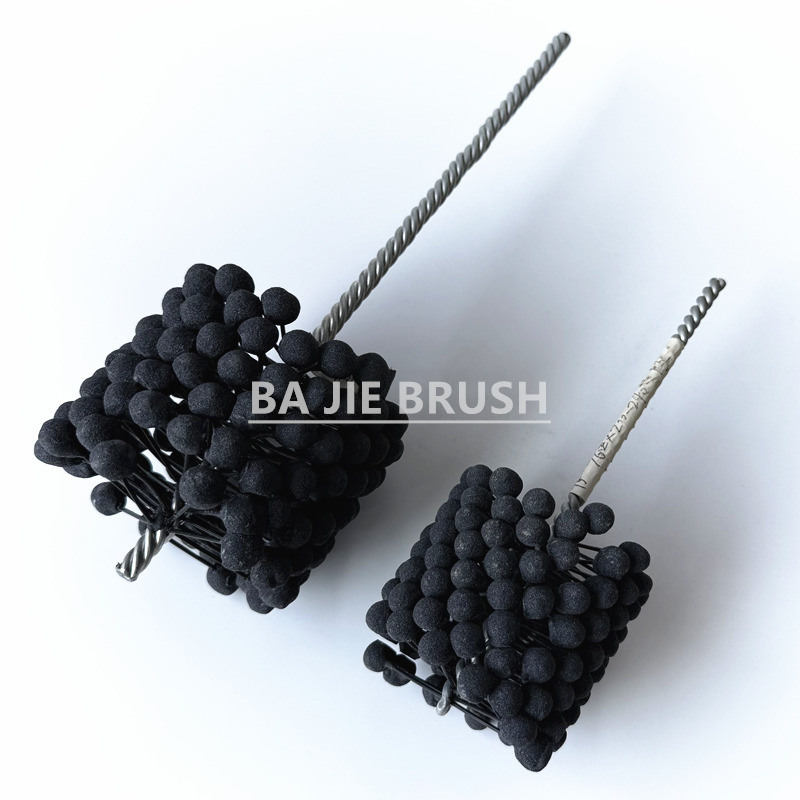

3 Inch And 4 Inch Cylinder Ball Hone

The 3 Inch And 4 Inch Cylinder Ball Hone is a flexible honing tool used for cylinder bore polishing and surface finishing.

볼 소재 :
Silicon Carbide/Aluminium Oxide
그릿 크기 :
60#/80#/120#/180#/240#/320#/400#/500#/600#/800#/1000#/1200#
스템 소재 :
Stainless Steel
기능 :
Honing
특징 :
3 Inch And 4 Inch Diameter

지금 문의하세요

제품 세부정보

China 3 Inch And 4 Inch Cylinder Ball Hone Manufacturer

Introduction

Cylinder ball hone is made of three parts:

The center stem is made by twisting two stainless steel wires together
The outward spreading part is made of nylon filaments, which are placed between the twisted stainless steel wires
At the tip of each nylon filament is a ball-shaped abrasive material

The abrasive material usually has two options:

Silicon Carbide
Aluminium Oxide

The most common sizes of this product are:

3 inch diameter
4 inch diameter

The grit size can be customized. Available grit sizes include:

60#
80#
120#
240#
320#
500#
800#
1000#
1200#

Features

Good Flexibility
This product has excellent flexibility. Because multiple nylon filaments are used as support, and nylon has high resilience, the honing brush can easily adapt to the inside surface of the cylinder bore.
When cleaning or honing a cylinder bore, it is recommended that the product diameter be about 8% larger than the cylinder bore diameter.

Customizable Mounting Method
The product is usually installed through the stainless steel stem onto devices such as:

Electric drills
Machine tools

At the bottom of the stem, a threaded shank can also be added for more secure installation.

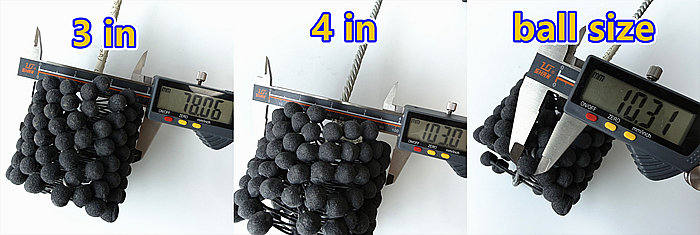

Ball Size
For the 3 inch and 4 inch honing brush, the diameter of each abrasive ball is approximately 10 mm.

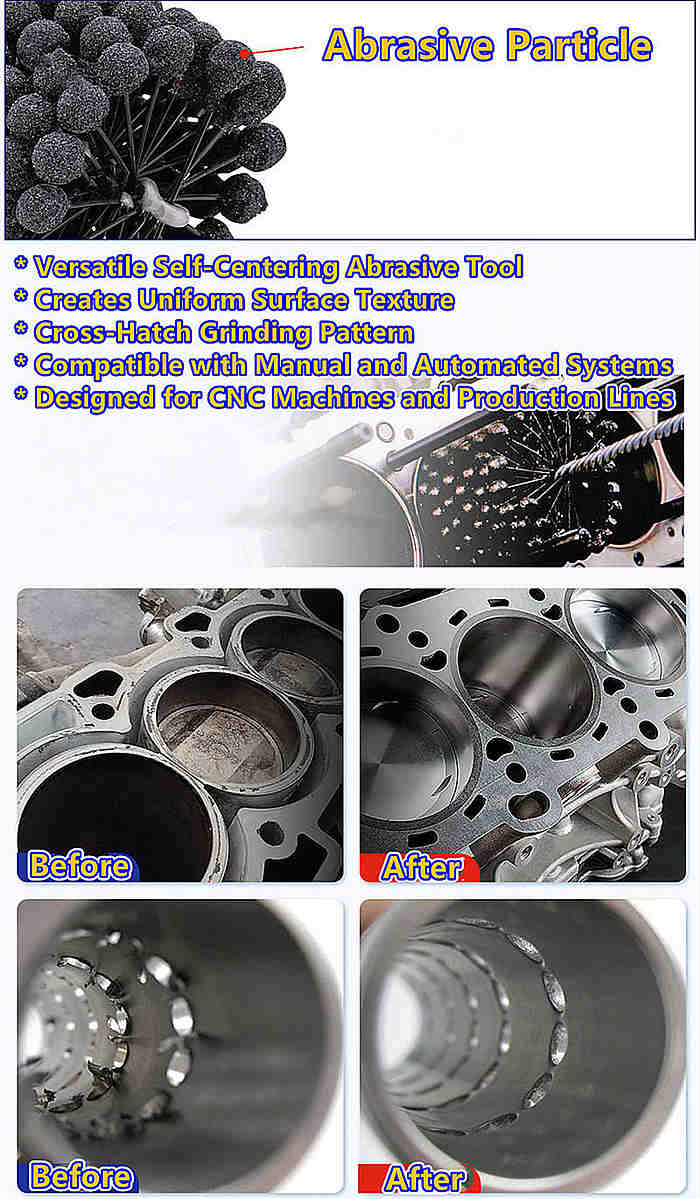

Application

This ball hone is mainly used for cylinder honing and polishing.

During operation, it is usually used together with honing oil to create a cross-hatched surface pattern inside the cylinder bore.

For:

3 inch ball hone, the suitable cylinder bore diameter is around 3.24 inch
4 inch ball hone, the suitable cylinder bore diameter is around 4.32 inch

During operation, the product rotates at high speed while moving up and down inside the cylinder bore. This motion helps achieve an even and ideal honing effect.

dingle ball hone
